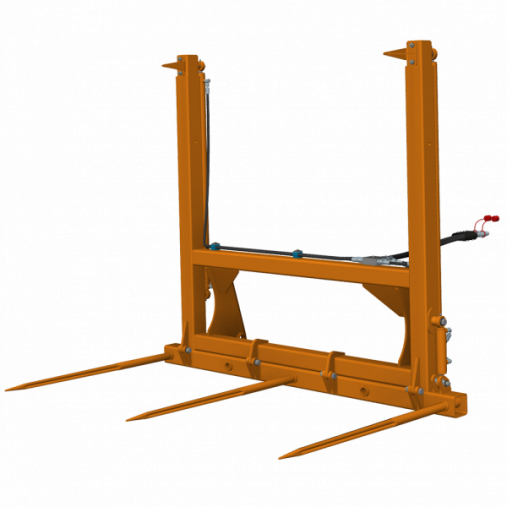

The GBK has three robust tines with a length of 1100mm for handling big bales as standard
specification but is prepared for fitting up to five tines. The tines are mounted in welded conical
sleeves. The frame height is 1400mm - this means two square bales can be transported

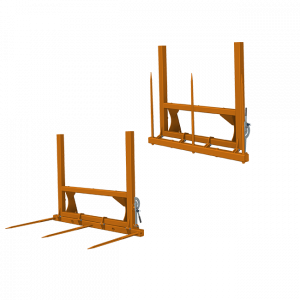

on top of each other. The tine tube can be folded in for safe road travel.
The GBK is available as manually foldable or as hydraulically foldable version.

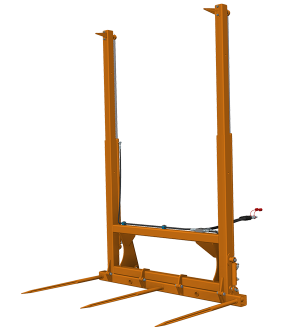

The GBK is available as manually foldable or as hydraulically foldable version. Additionally manually or hydraulically extendable slip guards for a maximum frame height of 2500mm can be ordered to stack up to 4 square bales. Optional slip-off daggers prevent stacked bales from slipping sideways.

The distance of the outer tines is 1700 mm. Alternatively, the GBK can also be ordered with
a broader tine tube for an outer tine spacing of 1900 mm.
